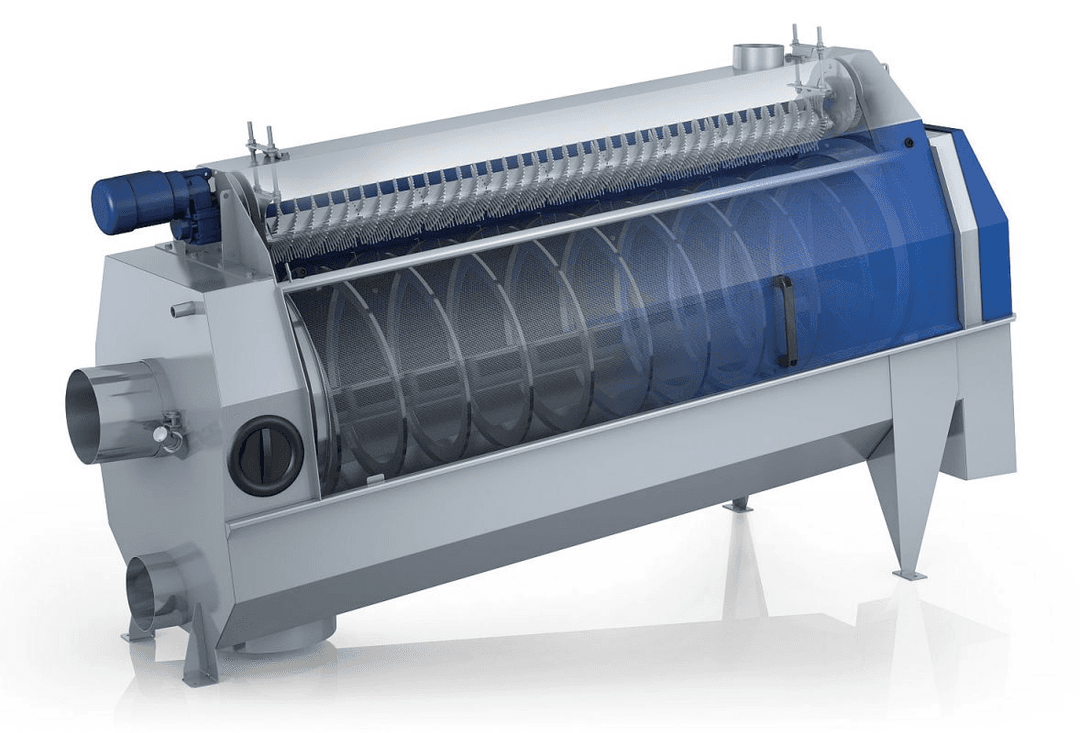

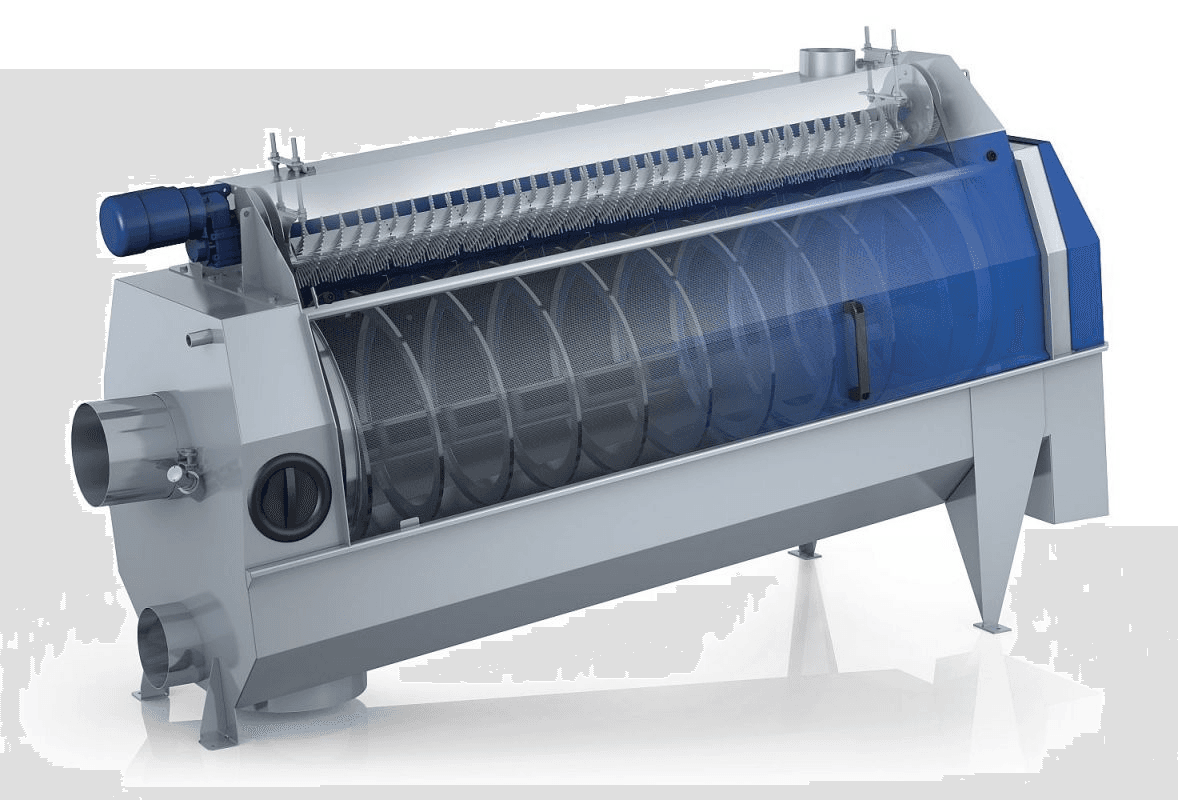

Drum Screen

Drum screen is a rotary screen which works in externally and internally feed both. This is also a fine type screen which removes the finner sized materials from wastewater. Filteration area of these screens are constructed through wedge wire or perforated sheet.

Key Features

Wedge wire slot/Perforated dia. size-0.5mm to 6mm
Type-Externally feed/Externally feed
Drum dia.-200mm to 1500mm (depends on data)
Drum length-600 to 2,500mm (depends on data)
Material of construction-SS304, SS316 (other on request)
