Product Details

Rotobrush Screen

Rotobrush screen is a mechanically cleaned screening equipment which is used to remove fine sized floating materials. These are mostly used in MBR, sugar, breweries, textile, chemical, food processing units. Filteration area of these screens are constructed through wedge wire.

Key Features

Wedge wire slot size -0.5mm to 8mm

Drum dia.- 600 to 2200mm

Drum length- 600 to 3000

Material of construction-SS304, SS316 (other on request)

Get Quote for This Solution

Multi Rake Screen

Multi Rake screen is a mechanically cleaned medium or coarse screening equipment which is applicable to screen out the medium & coarse sized floating materials from the wastewater. The screenings are lifted, transported and discharged using rakes, that are also suitable for cleaning the filtration area.

View Details

Step Screen

Step screen is a mechanically cleaned fine screening equipment which is applicable to screen out the finner sized floating materials from wastewater like bags, pouches, paper wastages, cloths, plastics many others. These screens operated either motor mounted on the shaft or hydraulically through power pack.

View Details

Drum Screen

Drum screen is a rotary screen which works in externally and internally feed both. This is also a fine type screen which removes the finner sized materials from wastewater. Filteration area of these screens are constructed through wedge wire or perforated sheet.

View Details

Hyperbolic-Static Screen

Hyperbolic screen is a manually cleaned very fine screening equipment which is used to remove very fine floating materials from the wastewater, These are mostly used in MBR, sugar, breweries, textile, chemical, food processing units.

View Details

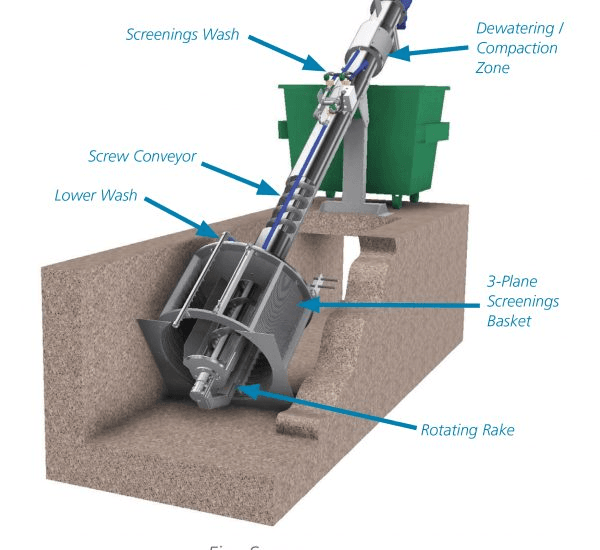

Screw Screen

Screw screen is a mechanically cleaned screening equipment which is used to remove fine sized floating materials with or without compaction. These are mostly used in MBR, sugar, breweries, textile, chemical, food processing units.

View Details

Screw Screen in Tank

Screw screen is useful to pre-treat any kind of sewage water being it municipal or industrial. The machine is installed inside a self-supporting tank. The machine is composed of a tank, complete with hinged upper cover with safety micro switch, air vent.

View Details

Trace Rake

Trace Rake is a manually/mechanically cleaned coarse screening equipment which is used to remove coarse floating materials from the water & wastewater, These are mostly used in river, power plant & for high ammount of wastewater.

View Details

J-Type Screen

J-Type screen is a mechanically cleaned medium or coarse screening equipment which is applicable to put down all the screenings into basket & screen out all the medium & coarse sized floating materials from the wastewater.

View Details

Bar Screen

Bar screen is a manually cleaned fine & coarse screening equipment which is used to remove fine & coarse floating materials from the wastewater, These are mostly used in inlet channel. These screens are constructed through bar & channel.

View Details
