Step Screen

Step Screen

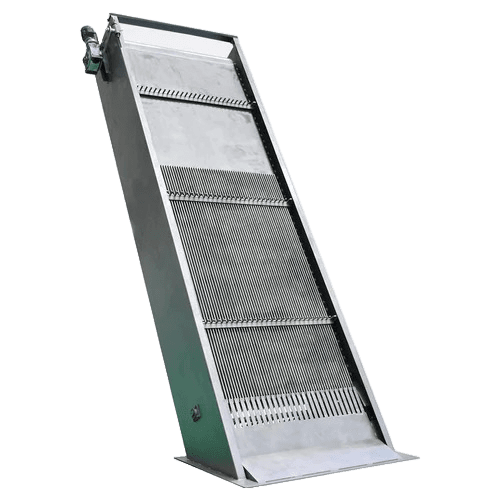

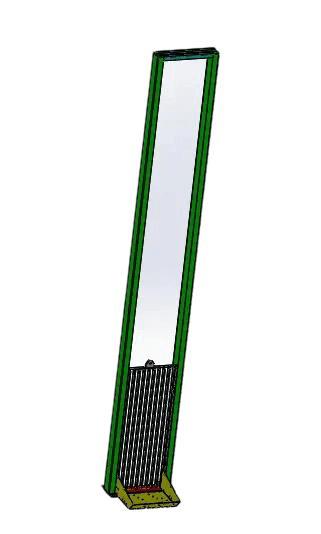

Step screen is a mechanically cleaned fine screening equipment which is applicable to screen out the finner sized floating materials from wastewater like bags, pouches, paper wastages, cloths, plastics many others. These screens operated either motor mounted on the shaft or hydraulically through power pack.

Key Features

  • Bar spacing-2mm to 6mm (Larger on request)
  • Channel width-300 to 2,000mm (Larger on request)
  • Channel depth-up to 2,200mm (Larger on request)
  • Lamella thk-2-3 mm
  • Material of construction-SS304, SS316 (other on request)
